Specifications

Standards

IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.1p (quality of service [QoS] priority), IEEE 802.1Q (VLAN), IEEE 802.11e (wireless QoS), IEEE 802.11i (security)

Protocols supported

TCP/IP, HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Mail Transfer Protocol (SMTP), FTP, Bonjour, Network Time Protocol (NTP), DNS, Universal Plug and Play (UPnP), RTP, RTSP, and DDNS

Ports

Ethernet, antenna, microphone in, speaker out, power (5V 2A)

Buttons

Reset

Cabling type

Unshielded twisted pair (UTP) Category 5

LEDs

Power, Activity, Ethernet, Wireless-G

Lens

Sensor

1/4-in. CMOS

Illumination

1 lux at f2.0

Focal length

500 mm~infinity

Field of view

60°

Video resolution

640 x 480, 320 x 240, 160 x 120

Frame rate

Up to 30 frames per second

Camera Control

Auto patrol

9 user-defined preset points

Pan

± 67°

Tilt

-34° (down) to +30° (up)

Setup, Configuration, and Management

User interface

Built-in web user interface for easy browser-based configuration (HTTP)

Web browser support

Internet Explorer 5.x or later with ActiveX support for viewing, recording, playing back, and setting motion detection; limited support for Safari and Mozilla Firefox (no motion detection)

Logging

Event logging (syslog)

Upgrades

Firmware upgrades available from web browser

Monitor and record software

• Monitoring and recording for up to 16 cameras

• Monitor live video, record, and play back simultaneously

Video

Dual codecs

MPEG-4 simple profile, MJPEG

Snapshot

JPEG

Image position

Flip and mirror

Image settings

Brightness and contrast

Video controls

Auto white balance (AWB), auto exposure (AES)

Image control

Select video by quality, bandwidth, and frame rate

Format

3GPP for use with 3G phones

Modulation

National Television System Committee (NTSC) and Phase Alternating Line (PAL)

Overlay

Time stamp and text description

Audio

Summary

• 2-way audio with built-in microphone (6 mm, -40 db +3 db)

• Microphone input - 3.5-mm phone jack

• Speaker output - 3.5-mm phone jack

Compression

G.726 - 16 kbps; G.711 A-law and µ-law

Sampling rate

8 kHz

Default bit rate

16 kbps

Included Video Monitoring System Software (SWVMS16)

Monitoring/recording software

• Monitoring, recording, and playback for up to 16 cameras

• Advanced search histogram or by time and date

• Recording set up to record by motion trigger, manual, or schedule

Alerts

Motion detection

4 detection areas with individual sensitivity thresholds; triggers alerts

FTP uploading

FTP server address and login settings

Schedule

Schedule alerts by day or time

Actions

Messaging, email (up to 3 email addresses), FTP

Security

WEP/WPA

WEP 64 bit/128 bit, WPA Temporal Key Integrity Protocol (WPA-TKIP), WPA Pre-Shared Key (WPA-PSK), WPA2-PSK, WPA2-Enterprise

User list

3-level user rights list to view video and to control camera

Username/password

Login authentication with up to 20-character username and 8-character password

Network

RTP and RTSP

Allow for viewing from any client that supports these protocols, such as 3G phones or QuickTime clients

NTP

Synchronizes camera date and time with your network

SMTP

Allows video clips to be emailed

FTP client

Facilitates scheduling transfer of images to an FTP server

DDNS

Facilitates accessing the camera by name, irrespective of the camera IP address

UPnP

Allows auto-discovery of the camera by other UPnP devices

Environmental

Dimensions
W x H x D

1.26 x 7.83 x 6.89 in.
(32 x 199 x 175 mm)

Weight

1.01 lb (.46 kg)

Power

5V DC 2.0A switching power supply

Certification

Wi-Fi, FCC, CE, and UL

Operating temperature

-32° to 113°F (0° to 45°C)

Storage temperature

-4° to 140°F (-20° to 70°C)

Operating humidity

10% to 80%, noncondensing

Storage humidity

0% to 90%, noncondensing

Package Contents

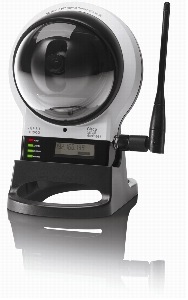

• Cisco WVC210 Wireless-G PTZ Internet Video Camera

• Wireless-G antenna

• Ethernet cable

• DC power adapter

• Desktop stand

• CD including setup wizard, user guide and video monitoring software

Minimum Requirements (Camera)

• Wired or wireless 802.11b or 802.11g network

• Network adapter with Ethernet network cable and TCP/IP installed on each PC

• Switch/router to support multiple connection points

• Internet Explorer 6.x or later with ActiveX support for viewing, recording, playback, and setting motion detection; limited support for Safari and Mozilla Firefox (no motion detection)

Minimum Video Monitoring System Requirements (4-Camera Viewing)

• CPU - Intel Pentium 4, 2.4 GHz

• RAM - 512 MB

• Motherboard - Intel 945 or 965 chip or above; Intel chipset recommended

• Video card - ATI Radeon 9200, NVIDIA GeForce FX-5200, or Intel 945G/965G or later; ATI recommended

• Ethernet - 100 BASE-T or above; Gigabit LAN recommended

• Hard disk - 80 GB or more

• Operating system - Microsoft Windows XP Pro Service Pack 2 or Microsoft Vista

Works With

• Cisco SFE2000P 24-Port 10/100 Ethernet Switch with Power over Ethernet (PoE)

• Cisco RVS400 4-Port Gigabit Security Router with VPN

• Cisco SRW224G4P 24-Port 10/100 + 4-Port Gigabit Switch with WebView and PoE

• Cisco NSS2000 2-Bay Network Storage System

Product Warranty

3-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty
